Switch was developed to reduce the cost of replacement chainrings, increase compatibility with new offsets and to make the process of changing your chainring much faster and simpler.
- Cheaper Replacement Cost – Replacement rings are a fraction of the cost of a complete direct mount chainring
- Quick Change – Replace your ring in less than an minute, using only a 4mm hex key. Tailor your gearing to the terrain that you’re riding
- Enduro World Series Champion Winning Narrow Wide tooth profile keeps your chain in place on the roughest terrain
- 4 Ring Sizes (28, 30, 32, 34T)
- 2 Profiles – both Round and Oval
- 12 speed ring designed to work with all 8, 9, 10, 11, and both Shimano Hypergilde 12 and SRAM Eagle 12 speed chains.
- Get ultimate traction with Oval rings by smoothing out the torque you deliver to your rear tire
Quick Change
Rings can be replaced in less than a minute with only a 4mm allen key, without removing your crank. Simply loosen the bolts 2 turns, unlock the ring by rotating it by 20 degrees and pull it over and off your crank. Reverse these steps to install your new ring. If you plan to ride a trail that you know is steeper than your local trails, you can switch to a smaller ring in the parking lot, in less time than it takes your friend to put on his riding shoes!
Material: 7075-T6
Weight: 69g (30T Oval)
Chainline: Standard is controlled by the crank.
Compatibility: Shimano direct mount XTR M9100, XT M8100, SLX M7100 series cranks.
Oval Rings:
- 12% ovality (32T is equal to a 30T-34T range)
- 115° clocking from crank arm puts the major axis in your power stroke

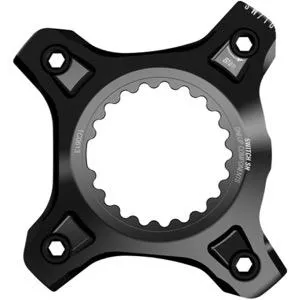

Installation: Align the small bump on the edge of the carrier with your crank arm. Install ring onto carrier and tighten bolts to 8Nm. All 4 bolts need to be backed off / tightened to Switch rings (anti-clockwise is tightening from the outside / on bike position). Use some grease on the Switch bolts and tightening with a wrench FULLY ENGAGED in the bolt.
